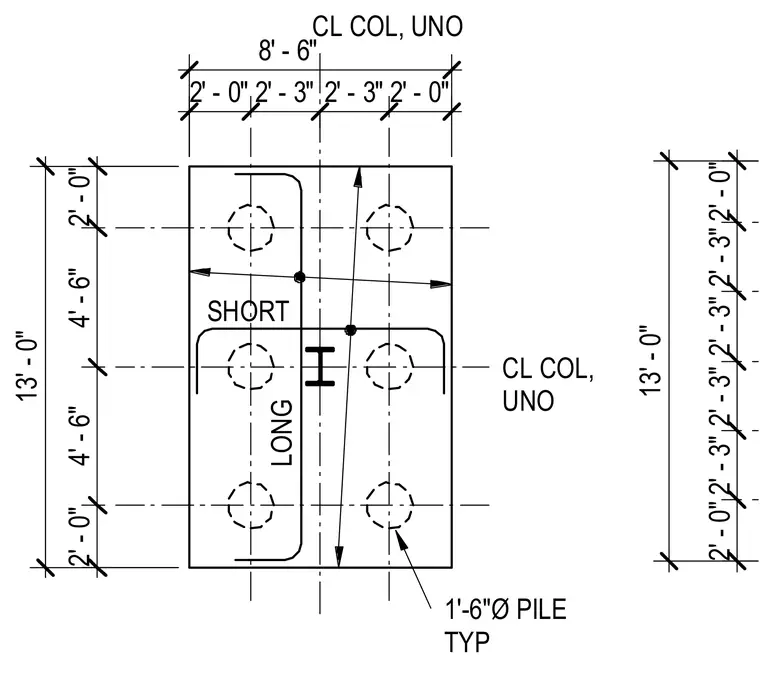

A rectangular concrete pile cap measuring thirteen feet long by eight feet six inches wide supports a structural steel column at its center. The foundation is founded on six one-foot-six-inch diameter piles spaced symmetrically in two rows along the long axis. Reinforcing steel hook bars run along the perimeter of the pile cap with specific edge and center-to-center dimensions for pile layout and column centerline alignment.
CL COL, UNO CL COL, UNO 8' - 6" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 2' - 0" 4' - 6" 4' - 6" 2' - 0" 13' - 0" 1'-6"Ø PILE TYP 2' - 0" 2' - 3" 2' - 3" 2' - 3" 2' - 3" 2' - 0" 13' - 0" LONG SHORT
