Structural · S-HEJC4

Typical Insulated Metal Panel Base Detail at 8" Concrete Curb

Materials

Concrete Steel Metal (misc.)

Elements

Columns Walls Floors / Slabs Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

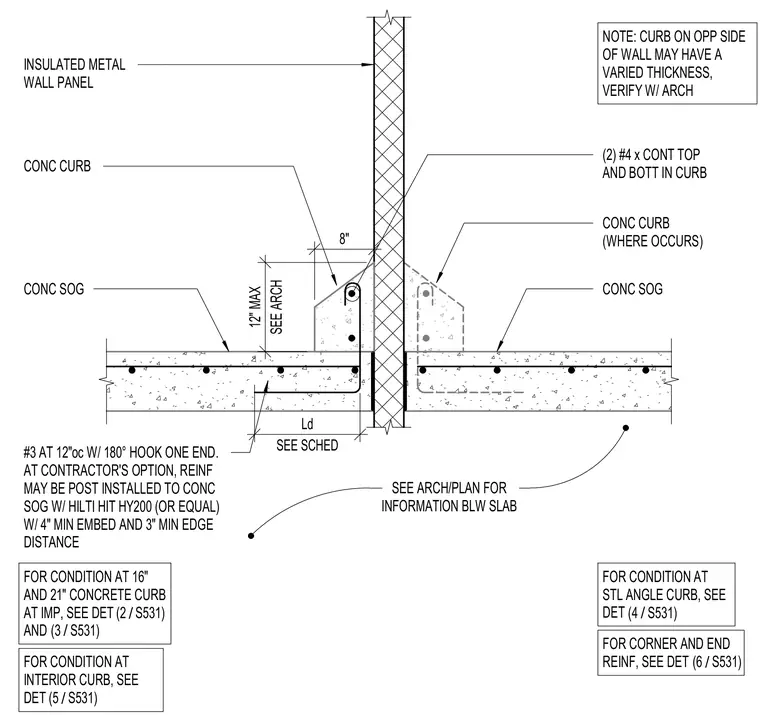

An insulated metal wall panel transitions to an eight-inch concrete curb cast over a concrete slab on grade. The curb is reinforced with two continuous number four top and bottom bars, along with number three dowels spaced at twelve inches on center with a one hundred eighty degree hook at one end. At the contractor's option, reinforcing may be post-installed into the concrete slab on grade using an approved adhesive anchor system with a four-inch minimum embedment and three-inch minimum edge distance. The opposite side of the wall features a varied concrete curb thickness verified with the architectural drawings. Additional conditions for sixteen-inch and twenty-one-inch concrete curbs, interior curbs, steel angle curbs, and corner and end reinforcing are referenced to separate details.
