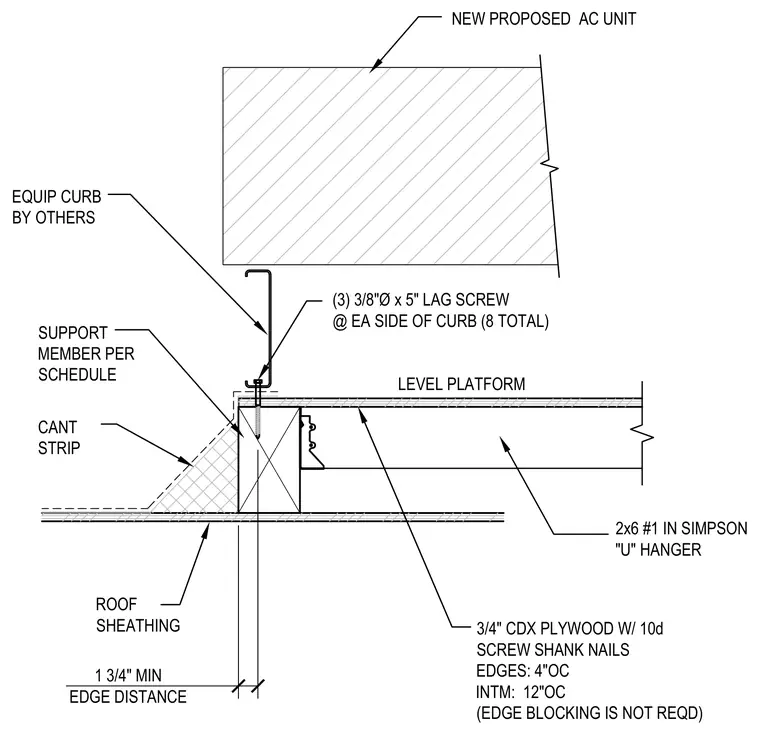

A wood-framed leveling platform supports a new proposed air conditioning unit over a roof assembly. The platform consists of 2x6 No.1 wood members hung in Simpson joist hangers, sheathed with 3/4-inch CDX plywood secured by 10d screw shank nails spaced at 4 inches on center at edges and 12 inches on center intermediately. An equipment curb provided by others attaches to the framing with three 3/8-inch diameter by 5-inch lag screws on each side for a total of eight screws. The roof construction features underlying roof sheathing and a cant strip adjacent to the support member.
EQUIP CURB BY OTHERS NEW PROPOSED AC UNIT (3) 3/8"Ø x 5" LAG SCREW @ EA SIDE OF CURB (8 TOTAL) LEVEL PLATFORM 2x6 #1 IN SIMPSON "U" HANGER SUPPORT MEMBER PER SCHEDULE CANT STRIP ROOF SHEATHING 3/4" CDX PLYWOOD W/ 10d SCREW SHANK NAILS EDGES: 4"OC INTM: 12"OC (EDGE BLOCKING IS NOT REQD) 1 3/4" MIN EDGE DISTANCE
