Structural · S-HE3GV

Beam to Column Flange and Web Connections

Materials

Steel

Elements

Columns Beams

Connections

Beam-to-Column Beam-to-Beam Bolted Connection

About this detail

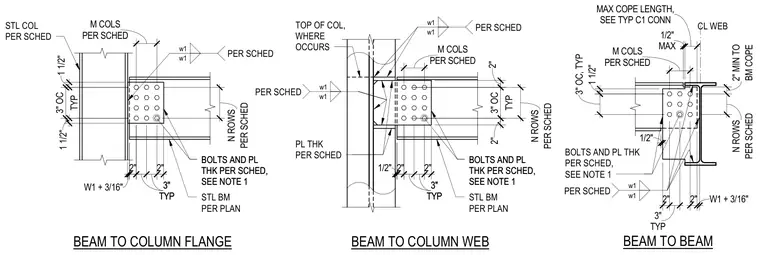

Steel framing connections are detailed for steel beams connecting to structural steel column flanges, column webs, and supporting beams. A shear plate is welded to the support member and bolted to the supported steel beam web with half-inch bolts configured in rows and columns per the structural schedule. Typical fastener spacings include one-and-a-half-inch or two-inch edge distances and three-inch on-center spacing. Beam copes are detailed with minimum distances and maximum lengths where required by standard framing conditions. Weld sizes and plate thicknesses are designated per schedule with typical fillet welds.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
