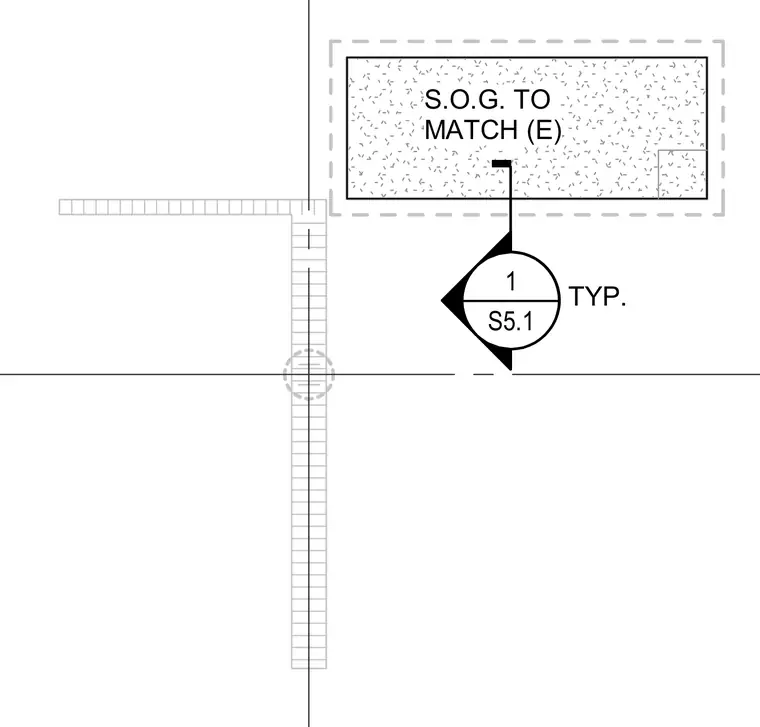

The slab on grade is constructed to match the existing slab condition typically across the floor area. A detail reference marker points to the slab with a callout indicating the existing match condition.
S.O.G. TO MATCH (E) 1 S5.1 _____ TYP.
