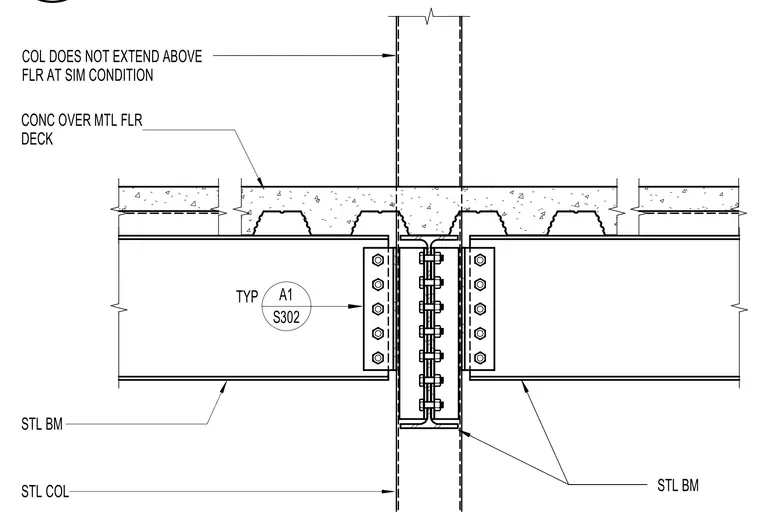

A structural steel beam frames into a hollow structural section column using bolted connection plates on both sides of the column web and flange. The concrete slab over metal floor deck continues across the top of the framing with the column terminating at the floor level under similar conditions.
STL COL STL BM COL DOES NOT EXTEND ABOVE FLR AT SIM CONDITION CONC OVER MTL FLR DECK STL BM A1 S302 TYP
