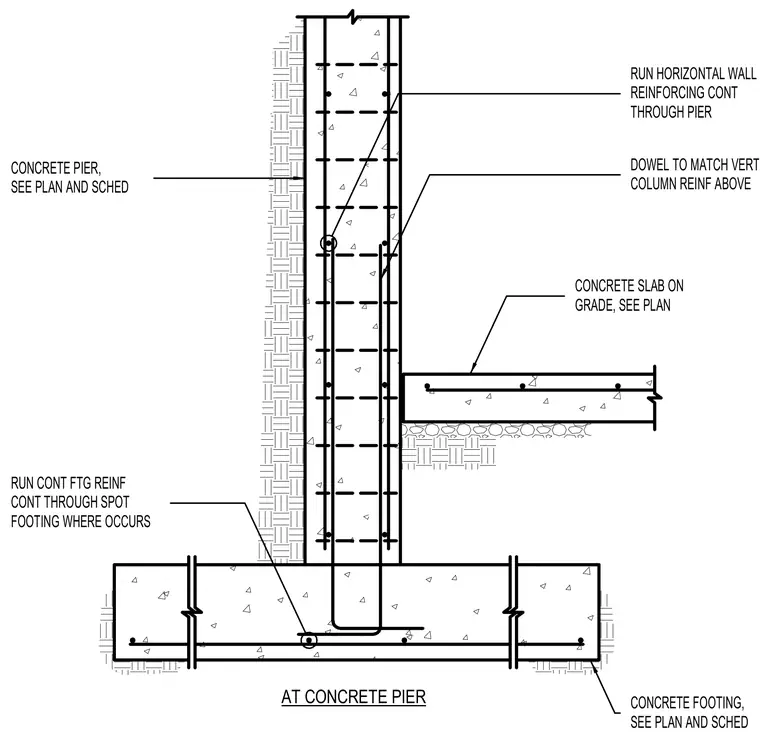

Horizontal wall reinforcing runs continuously through the concrete pier, which is sized per plan and schedule. Vertical dowels match the column reinforcement above and extend down into the concrete footing. Continuous footing reinforcement runs through the spot footing where it occurs at the concrete pier. A concrete slab on grade ties into the pier assembly as sized per plan.
DOWEL TO MATCH VERT COLUMN REINF ABOVE CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE PIER, SEE PLAN AND SCHED RUN CONT FTG REINF CONT THROUGH SPOT FOOTING WHERE OCCURS AT CONCRETE PIER RUN HORIZONTAL WALL REINFORCING CONT THROUGH PIER CONCRETE SLAB ON GRADE, SEE PLAN
