Structural attachment for a hanging fan support anchored through an ADLT panel. The assembly features a one-half inch by twelve inch by twelve inch steel plate fastened with four-inch mounting screws, bearing on a three-eighths inch by three inch by three inch plate washer over ADLT sheathing. A core-drilled penetration through the ADLT panel accommodates the hanging fan support rod provided by others.

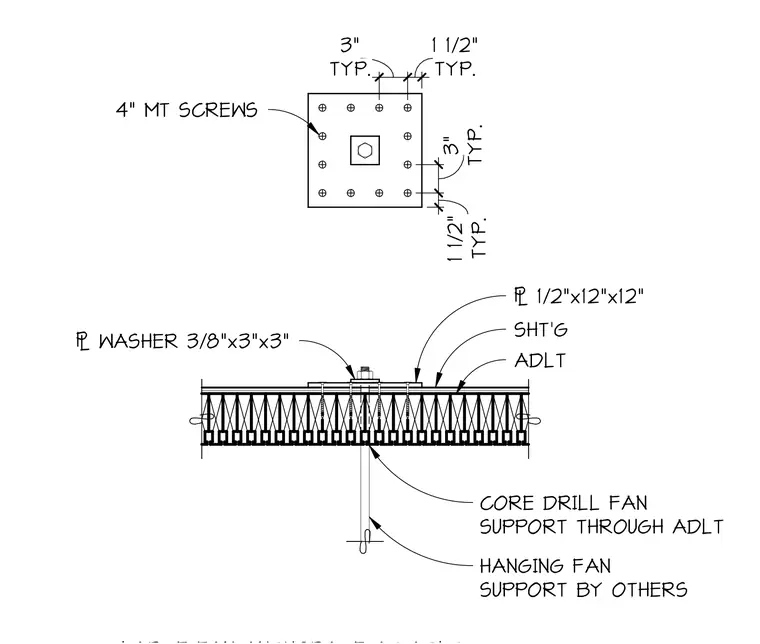

HANGING FAN SUPPORT BY OTHERS CORE DRILL FAN SUPPORT THROUGH ADLT ADLT SHT'G & 1/2"x12"x12" & WASHER 3/8"x3"x3" TYP. 1 1/2" TYP. 3" TYP. 3" TYP. 1 1/2" 4" MT SCREWS
