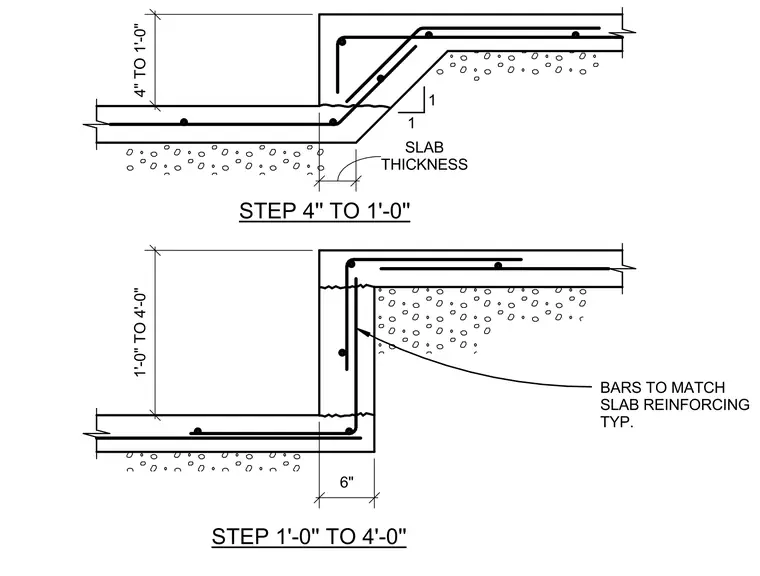

These details show typical vertical steps in a concrete slab on grade, ranging from four inches to four feet in height. The assembly includes slab reinforcement bars matched to the main slab reinforcing typically throughout, with bent and hooked dowels reinforcing the step transition. The step configuration accommodates a slab thickness of six inches at the vertical face. Heights vary from four inches to one foot on the first detail, and from one foot to four feet on the second detail.
1 1 BARS TO MATCH SLAB REINFORCING TYP. STEP 1'-0'' TO 4'-0'' STEP 4'' TO 1'-0'' 4" TO 1'-0" SLAB THICKNESS 6" 1'-0" TO 4'-0"
