Cored holes in concrete over metal deck are limited to a maximum diameter of six inches with typical spacing rules relative to the direction of the deck span. Holes parallel to the deck span require a minimum clear distance equal to the diameter of the smaller adjacent hole, while holes perpendicular to the deck span require a minimum distance of four times the diameter of the larger adjacent hole. Individual holes less than six inches in diameter that cut no more than one web require no additional reinforcing. Coring must not occur before the concrete has fully cured.

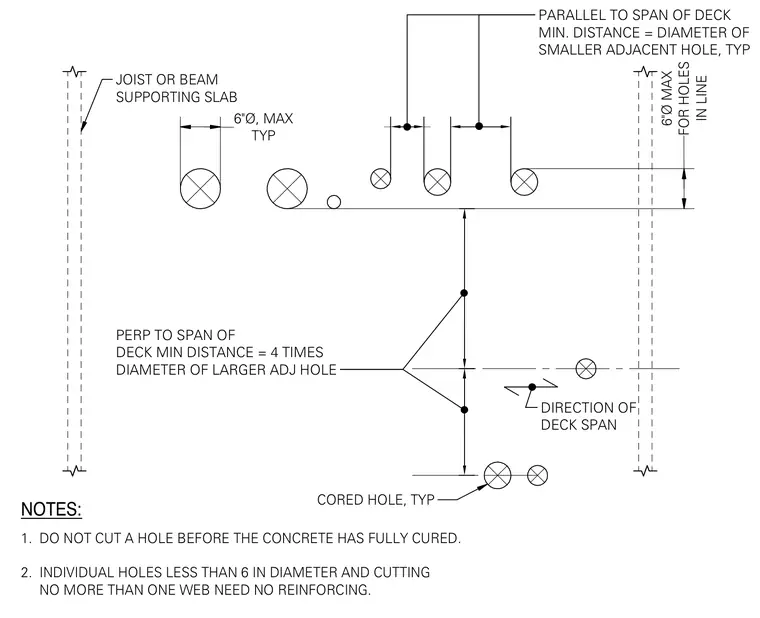

JOIST OR BEAM SUPPORTING SLAB TYP 6"Ø, MAX IN LINE 6"Ø MAX FOR HOLES PARALLEL TO SPAN OF DECK MIN. DISTANCE = DIAMETER OF SMALLER ADJACENT HOLE, TYP PERP TO SPAN OF DECK MIN DISTANCE = 4 TIMES DIAMETER OF LARGER ADJ HOLE CORED HOLE, TYP DIRECTION OF DECK SPAN NOTES: 1. DO NOT CUT A HOLE BEFORE THE CONCRETE HAS FULLY CURED. 2. INDIVIDUAL HOLES LESS THAN 6 IN DIAMETER AND CUTTING NO MORE THAN ONE WEB NEED NO REINFORCING.
