Structural · S-HD4CG

BRBF Column Base and Gusset Connection

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Welded Connection Embed Plate

About this detail

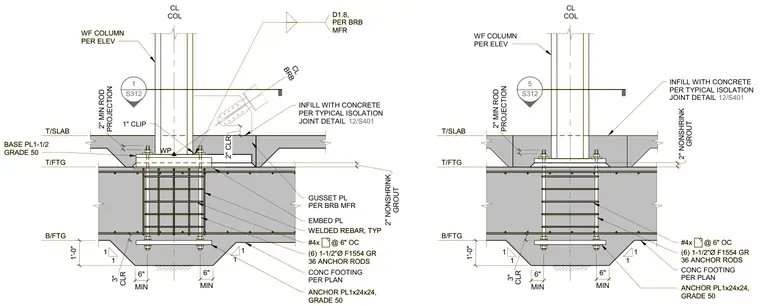

A wide flange column rests on a 1-1/2-inch Grade 50 base plate with a 2-inch nonshrink grout pad above the footing, connected to a reinforced concrete footing. Anchorage is provided by six 1-1/2-inch diameter ASTM F1554 Grade 36 anchor rods extending through the footing to a lower anchor plate measuring 1x24x24 inches. The concrete footing is reinforced with number 4 bars spaced at 6 inches on center, with an embed plate and welded rebar assembly. A buckling-restrained brace connects via a gusset plate sized per the manufacturer requirements with a 1-inch clip, supported by concrete infill per typical isolation joint detail 12/S401.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
