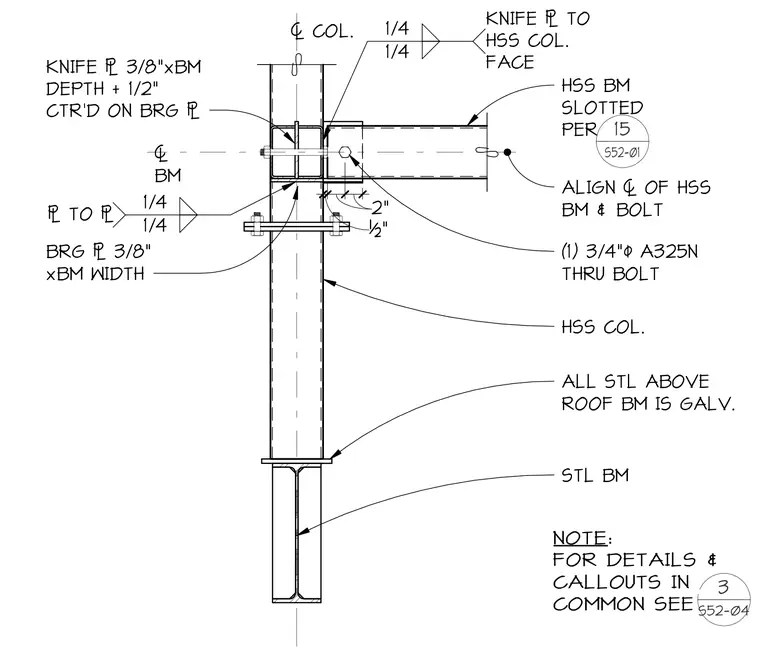

A hollow structural section beam frames into a hollow structural section column via a three-eighths-inch thick knife plate welded to the column face with quarter-inch fillet welds. The beam is slotted to receive the knife plate and secured with one three-quarter-inch diameter A325N through bolt. A bearing plate measuring three-eighths-inch by the beam width is welded beneath the connection. All steel located above the roof beam is galvanized, and plate-to-plate connections are welded with quarter-inch fillet welds.
COL. ½" 2" 2" 1/4 1/4 KNIFE # TO HSS COL. FACE KNIFE # 3/8"xBM DEPTH + 1/2" CTR'D ON BRG # HSS BM SLOTTED PER ALIGN OF HSS BM & BOLT (1) 3/4"( A325N THRU BOLT HSS COL. ALL STL ABOVE ROOF BM IS GALV. STL BM BM BRG # 3/8" xBM WIDTH 1/4 1/4 # TO # NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 3 S52-04 15 S52-01
