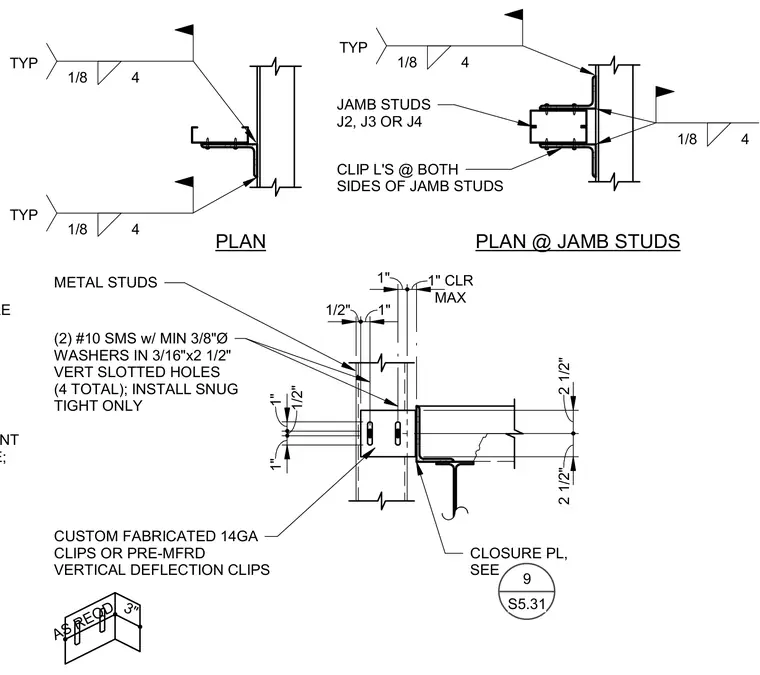

Metal studs connect to vertical deflection clips using two number ten sheet metal screws with minimum three-eighth-inch diameter washers in three-sixteenth by two-and-one-half-inch vertical slotted holes for four total fasteners installed snug tight only. Custom fabricated fourteen-gauge clips or pre-manufactured vertical deflection clips provide movement clearance. Clip angles are placed at both sides of jamb studs designated J2, J3, or J4 with fillet welds. A closure plate is provided per plan.
48"CC ADD STRONGBACK AS NOTED ABOVE; WHERE NOTIFY THE SEOR PRIOR TO ATTACHING TO MOMENT FRAME BEAMS OUTSIDE OF THE PROTECTED ZONE; PLAN @ JAMB STUDS JAMB STUDS J2, J3 OR J4 CLIP L'S @ BOTH SIDES OF JAMB STUDS 1/8 4 TYP 1/8 4 METAL STUDS (2) #10 SMS w/ MIN 3/8"Ø WASHERS IN 3/16"x2 1/2" VERT SLOTTED HOLES (4 TOTAL); INSTALL SNUG TIGHT ONLY CUSTOM FABRICATED 14GA CLIPS OR PRE-MFRD VERTICAL DEFLECTION CLIPS 3" AS REQD 1" 1/2" 1" 2 1/2" 2 1/2" MAX 1" CLR 1" 1" 1/2" CLOSURE PL, SEE PLAN 1/8 4 TYP 1/8 4 TYP 9 S5.31
