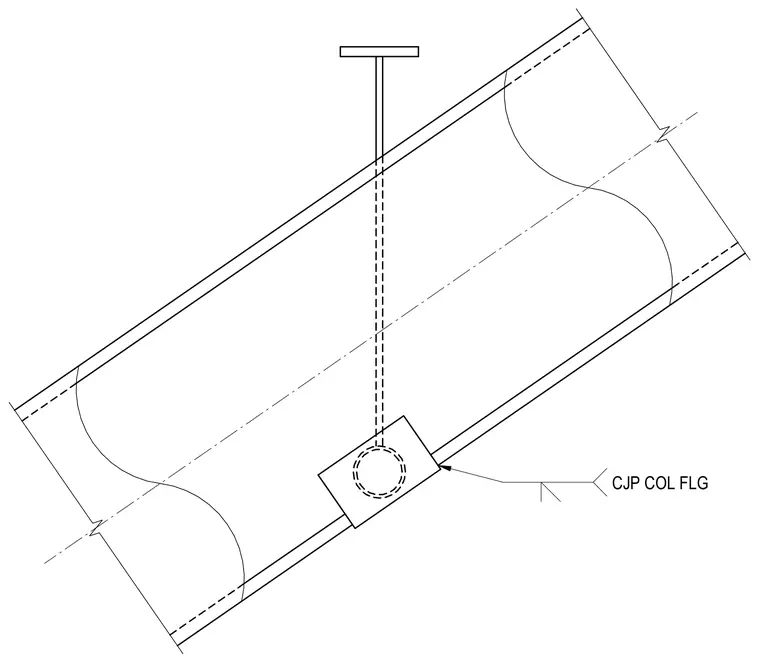

A structural connection details a complete joint penetration weld applied to a column flange at the intersection with a framing member. The configuration incorporates a plate element welded directly to the steel column flange profile. The weld is specified as a complete joint penetration weld designated along the column flange.
