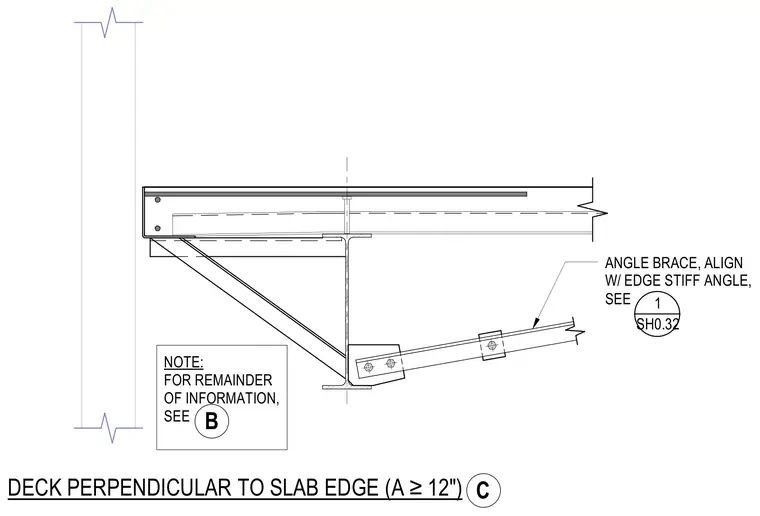

An angle brace connects to the structural steel framing, aligned with the edge stiffening angle as referenced on sheet SH0.32. The metal deck runs perpendicular to the slab edge condition, bearing on the structural steel beam below. Additional framing and connection information is referenced in detail B.
ANGLE BRACE, ALIGN W/ EDGE STIFF ANGLE, SEE NOTE: FOR REMAINDER OF INFORMATION, SEE DECK PERPENDICULAR TO SLAB EDGE (A ≥12") 1 SH0.32 C B
