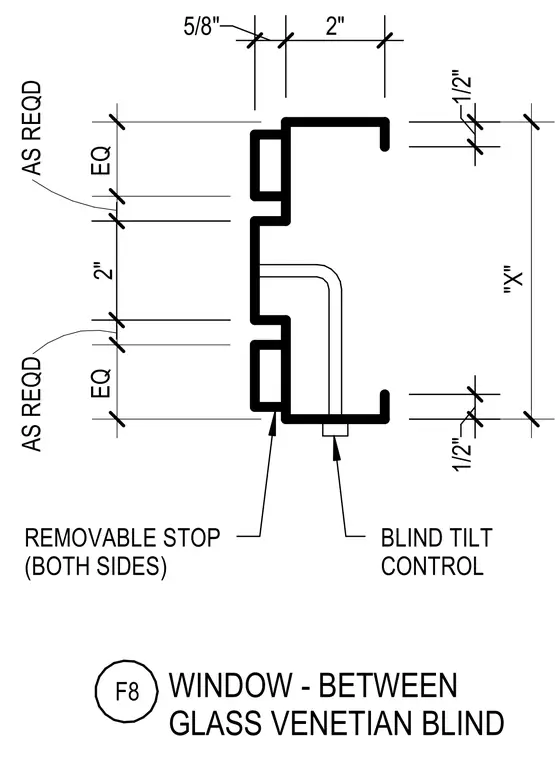

A specialized window profile houses a between-glass venetian blind system. The assembly features removable glazing stops on both sides and an integrated blind tilt control mechanism. Dimensional callouts indicate a two-inch primary width with five-eighths inch and variable equal spacings as required. The overall height is referenced as variable dimension X with half-inch clearances top and bottom.
5/8" 2" 2" 1/2" 1/2" REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL "X" WINDOW - BETWEEN GLASS VENETIAN BLIND F8 AS REQD AS REQD EQ EQ
