Gypsum Board to Acoustical Ceiling Flush Transition Detail

Materials

Elements

About this detail

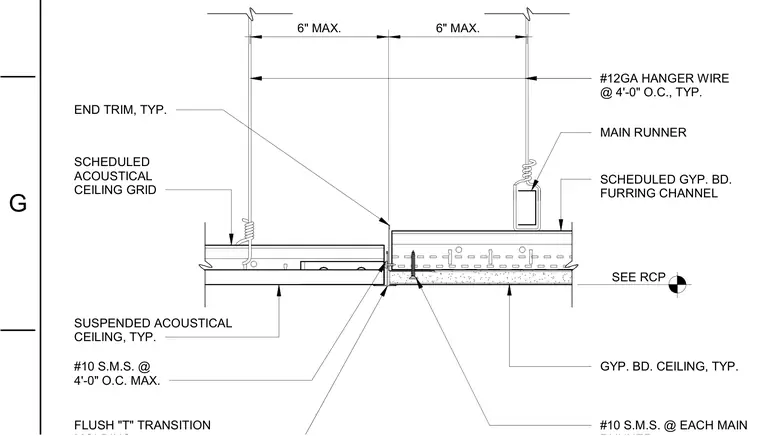

A flush transition between a gypsum board ceiling and a suspended acoustical ceiling utilizes a specialized transition molding. The assembly is supported from above by number twelve gauge hanger wires spaced at four feet on center maximum, positioned within six inches of the transition edge. A scheduled acoustical ceiling grid main runner terminates at the transition trim, while a scheduled gypsum board furring channel supports the drywall edge. Connection is achieved using number ten sheet metal screws spaced at four feet on center maximum, with additional fasteners at each main runner.
