A structural steel beam connects to a supporting girder per plan using bolted framing connections. A one-half inch plate is welded to the underside of the beam web with five-sixteenths inch fillet welds. One-inch diameter A490-X bolts secure the web and bottom plate, utilizing two vertical short slotted holes. Geometric spacing requirements maintain condition C where the dimension d1 is greater than d2 plus eleven inches and less than d2 plus sixteen inches.

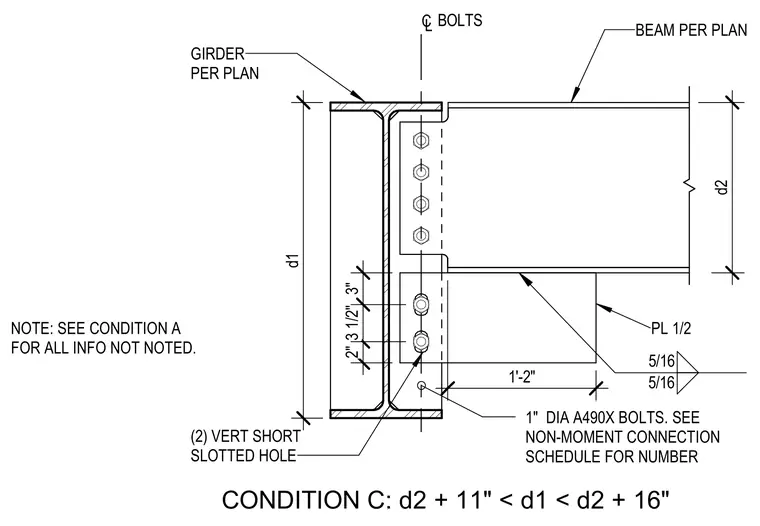

GIRDER PER PLAN BEAM PER PLAN C L BOLTS 1" DIA A490X BOLTS. SEE NON-MOMENT CONNECTION SCHEDULE FOR NUMBER 1'-2" d2 d1 PL 1/2 CONDITION C: d2 + 11" < d1 < d2 + 16" 2" 3 1/2" 3" (2) VERT SHORT SLOTTED HOLE NOTE: SEE CONDITION A FOR ALL INFO NOT NOTED. 5/16 5/16
