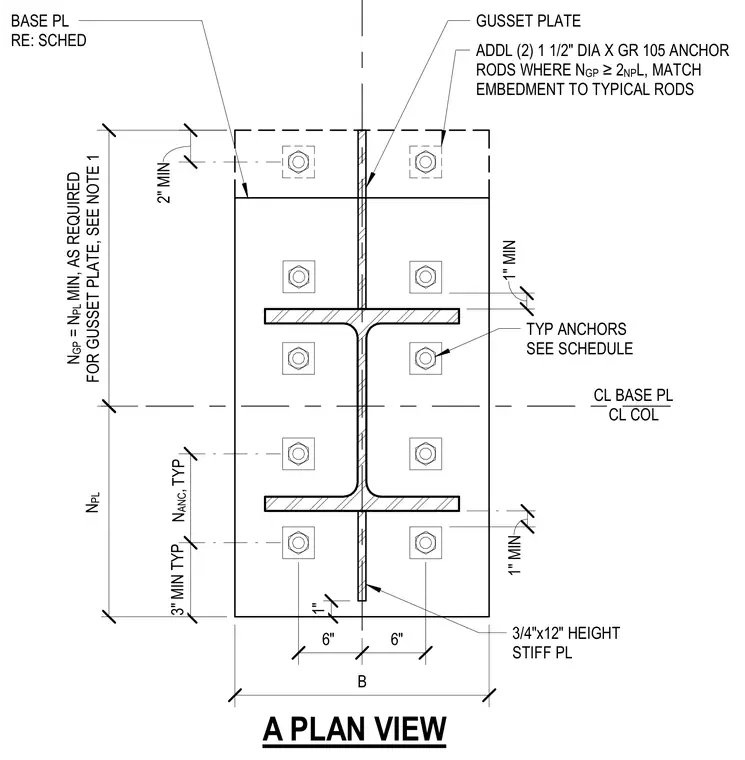

A structural steel column base plate is detailed in plan view with an intersecting gusset plate and multiple anchor rods. The assembly features a base plate sized per the project schedule, welded to a column with three-quarter-inch by twelve-inch high stiffener plates. Additional one-and-a-half-inch diameter Grade 105 anchor rods are provided where the gusset plate capacity requires them, matching the embedment depth of typical anchor rods. Typical anchor rods are spaced with a three-inch minimum typical distance and one-inch minimum edge distances.
CL BASE PL CL COL GUSSET PLATE A PLAN VIEW 1' - 5 3/8" B BASE PL RE: SCHED 3" MIN TYP 6" 6" 2" MIN ADDL (2) 1 1/2" DIA X GR 105 ANCHOR RODS WHERE N GP ≥2 NP L, MATCH EMBEDMENT TO TYPICAL RODS 1" MIN 3/4"x12" HEIGHT STIFF PL N ANC , TYP N GP = N PL MIN, AS REQUIRED FOR GUSSET PLATE, SEE NOTE 1 N PL TYP ANCHORS SEE SCHEDULE 1" 1" MIN
