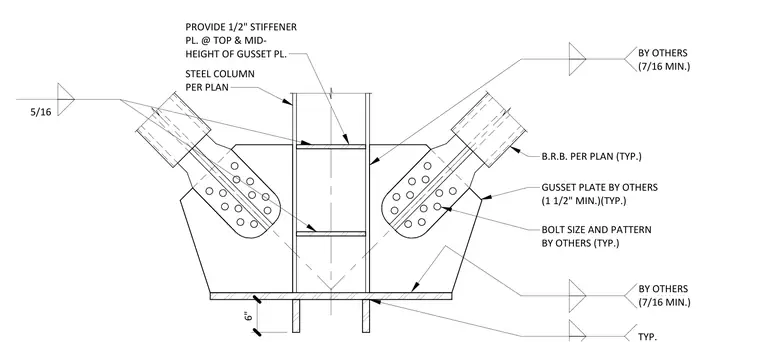

A steel column rests on a base plate, featuring gusset plates attached to the column web and flanges to receive buckling restrained braces. One-half inch thick stiffener plates reinforce the gusset plates at the top and mid-height. Buckling restrained braces connect to the gusset plates via a bolted connection, with bolt size and pattern specified by others. Welds connecting the gusset plates to the column and base plate are seven-sixteenths inch minimum fillet welds, while other connections utilize five-sixteenths inch fillet welds. The gusset plate thickness is a minimum of one and one-half inches.
Text on the drawing
ELEVATION 5/16 STEEL COLUMN PER PLAN B.R.B. PER PLAN (TYP.) GUSSET PLATE BY OTHERS (1 1/2" MIN.)(TYP.) ELEVATION BY OTHERS BY OTHERS (7/16 MIN.) 5/16 TYP. PROVIDE 1/2" STIFFENER PL. @ TOP & MID- HEIGHT OF GUSSET PL. 6" BOLT SIZE AND PATTERN BY OTHERS (TYP.) BY OTHERS (7/16 MIN.)
