A shear tab connection joins a steel beam and a column flange. The shear tab plate is welded to the column flange with a specified weld size and clearance, while the beam web attaches with rows of bolts sized per plan and schedule. Continuity plates are provided at the beam flange levels as indicated by typical details. The dimensioning references AISC specifications for k1 distances and edge clearances.

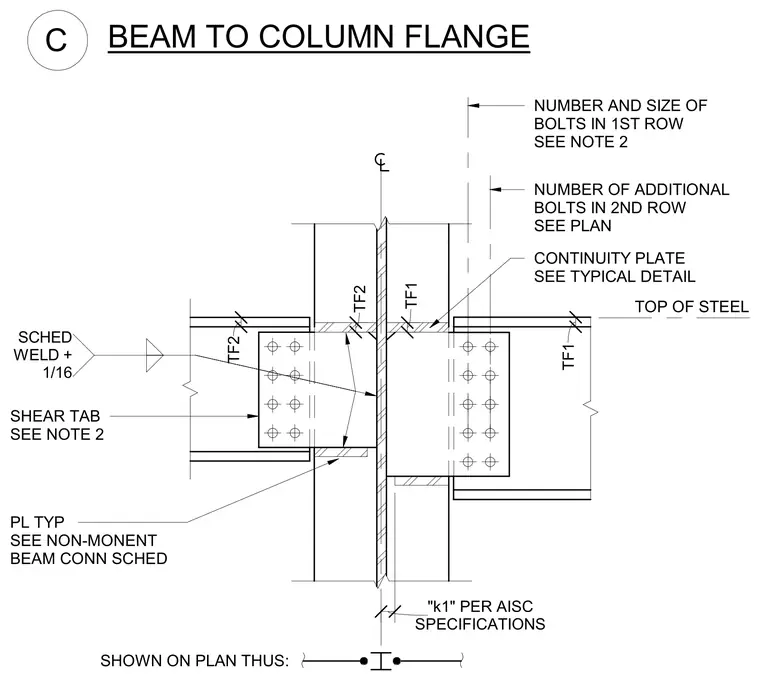

SHEAR TAB SEE NOTE 2 SHOWN ON PLAN THUS: TOP OF STEEL BEAM TO COLUMN FLANGE C SCHED WELD + 1/16 TF2 TF2 TF1 TF1 SPECIFICATIONS "k1" PER AISC NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN CONTINUITY PLATE SEE TYPICAL DETAIL PL TYP SEE NON-MONENT BEAM CONN SCHED
