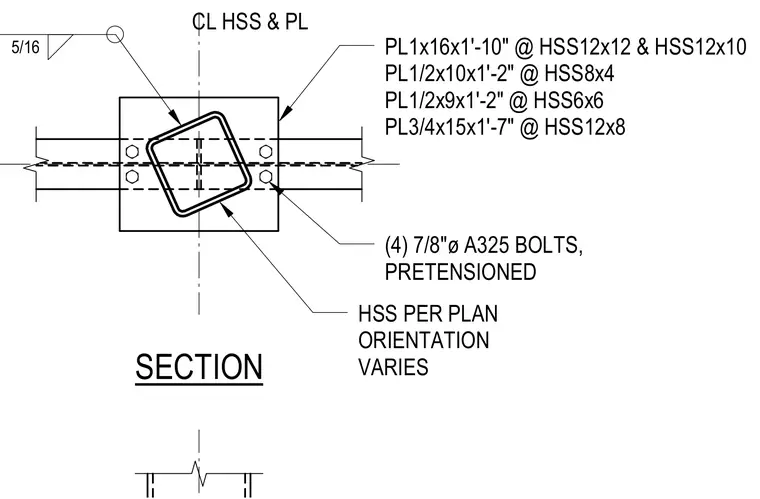

This structural steel connection features a hollow structural section column oriented per plan with variable rotation, aligning with a center line plate. The connection is secured using four 7/8-inch diameter A325 pretensioned bolts and specified plate sizes including 1x16x1'-10" for HSS12x12 and HSS12x10, 1/2x10x1'-2" for HSS8x4, 1/2x9x1'-2" for HSS6x6, and 3/4x15x1'-7" for HSS12x8. A 5/16-inch fillet weld is designated at the plate assembly.
CL HSS & PL PL1x16x1'-10" @ HSS12x12 & HSS12x10 PL1/2x10x1'-2" @ HSS8x4 PL1/2x9x1'-2" @ HSS6x6 PL3/4x15x1'-7" @ HSS12x8 (4) 7/8"ø A325 BOLTS, PRETENSIONED HSS PER PLAN ORIENTATION VARIES SECTION 5/16
