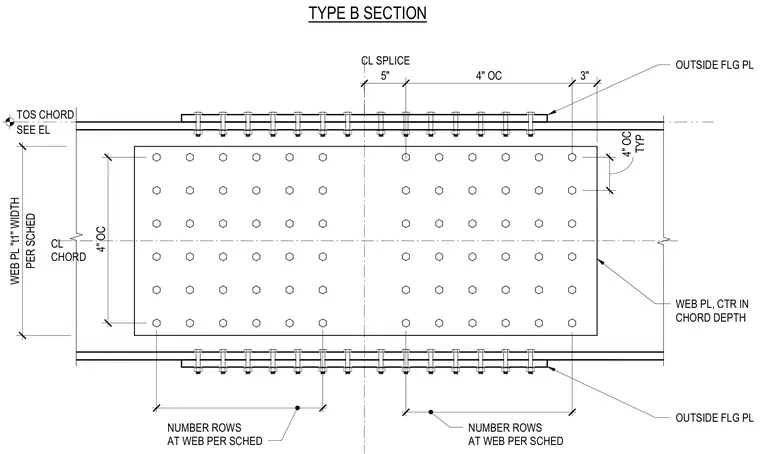

The structural chord splice features outside flange plates positioned symmetrically across the splice centerline with bolt rows spaced at five inches and four inches on center. The web plate is centered within the chord depth, secured with multiple rows of bolts spaced at four inches on center. Dimensions reference the top of steel chord elevation and chord centerline.
TYPE B SECTION CL SPLICE OUTSIDE FLG PL OUTSIDE FLG PL NUMBER ROWS AT WEB PER SCHED NUMBER ROWS AT WEB PER SCHED TYP 4" OC 5" 4" OC 3" 20" 20" CL CHORD SEE EL TOS CHORD PER SCHED WEB PL "t1" WIDTH WEB PL, CTR IN CHORD DEPTH 4" OC
