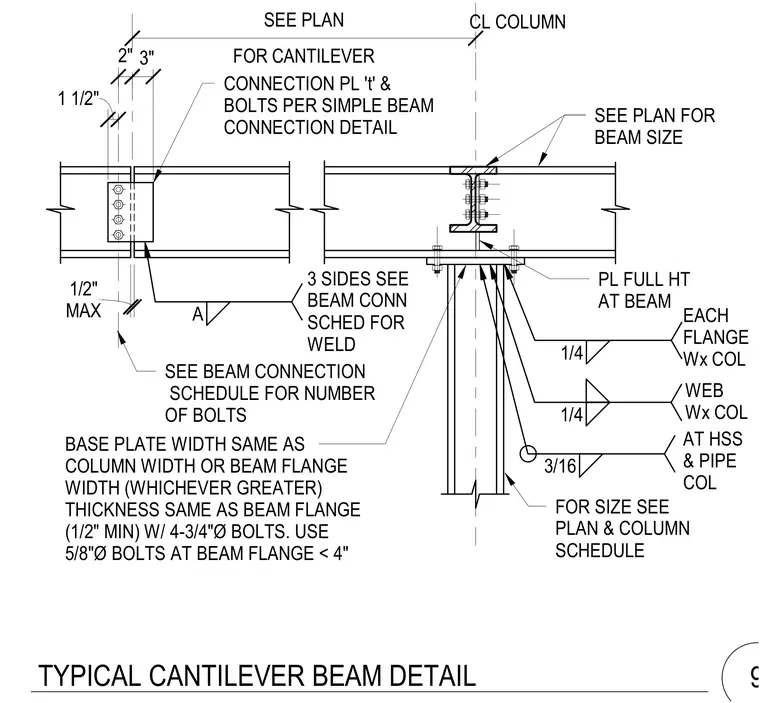

A cantilever steel beam connects to a supporting column using a connection plate and bolts sized per the structural schedule, with a maximum clearance gap of 1/2 inch at the joint. A full-height plate is welded to the beam at the column connection with quarter-inch fillet welds on each flange and the web, and three-sixteenths inch welds at hollow structural sections and pipe columns. The base plate matches the width of the column or beam flange—whichever is greater—with a minimum thickness matching the beam flange, and is secured using four three-quarter-inch diameter anchor bolts, substituting five-eighths-inch diameter bolts when the beam flange is under four inches.
PL FULL HT AT BEAM CONNECTION PL 't' & BOLTS PER SIMPLE BEAM CONNECTION DETAIL EACH FLANGE Wx COL CL COLUMN SEE PLAN FOR BEAM SIZE 3 SIDES SEE BEAM CONN SCHED FOR WELD SEE BEAM CONNECTION SCHEDULE FOR NUMBER OF BOLTS FOR SIZE SEE PLAN & COLUMN SCHEDULE 1/4 2" 1/4 A FOR CANTILEVER SEE PLAN BASE PLATE WIDTH SAME AS COLUMN WIDTH OR BEAM FLANGE WIDTH (WHICHEVER GREATER) THICKNESS SAME AS BEAM FLANGE (1/2" MIN) W/ 4-3/4"Ø BOLTS. USE 5/8"Ø BOLTS AT BEAM FLANGE < 4" MAX 1/2" AT HSS & PIPE COL 3/16 1 1/2" 3" WEB Wx COL TYPICAL CANTILEVER BEAM DETAIL 9
