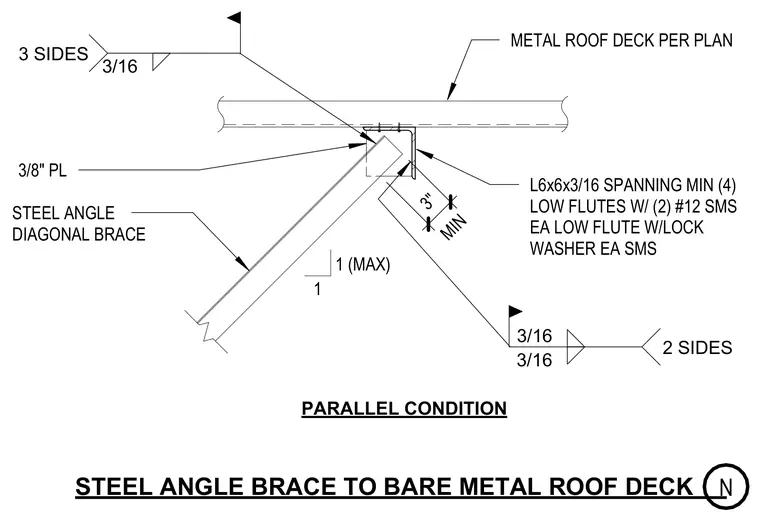

A structural steel angle diagonal brace connects to a bare metal roof deck via a three-eighths-inch plate welded parallel to the assembly. The L6x6x3/16 angle spans a minimum of four low flutes, fastened with two number twelve sheet metal screws and lock washers at each low flute. A three-sixteenths-inch fillet weld secures the connection on three sides at the deck interface and two sides along the brace. A field-weld flag symbol indicates site installation.
STEEL ANGLE BRACE TO BARE METAL ROOF DECK METAL ROOF DECK PER PLAN L6x6x3/16 SPANNING MIN (4) LOW FLUTES W/ (2) #12 SMS EA LOW FLUTE W/LOCK WASHER EA SMS 1 1 (MAX) STEEL ANGLE DIAGONAL BRACE 3/16 3 SIDES MIN 3" 3/16 3/16 2 SIDES 3/8" PL PARALLEL CONDITION N
