Structural · S-HBF3M

Interior Wide Flange Steel Column Bearing and Base Plate Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Connections / Plates

Connections

Base Plate / Anchorage

About this detail

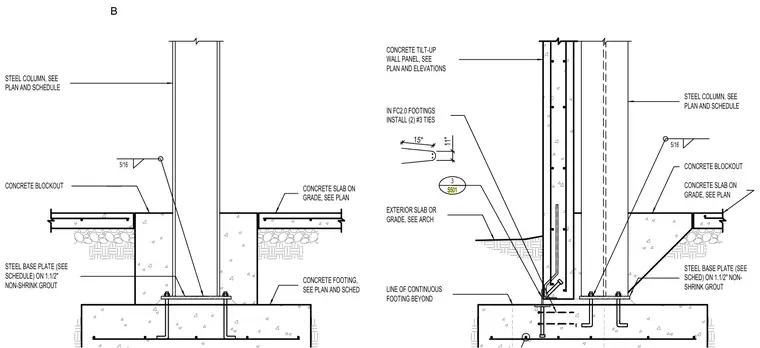

A wide flange steel column bears onto a steel base plate seated on one and one-half inches of non-shrink grout atop a concrete footing. The base plate is secured with anchor bolts embedded in the concrete foundation. A concrete slab on grade surrounds the column with a formed blockout. A continuous footing runs beneath, with adjacent concrete tilt-up wall panels where applicable.
