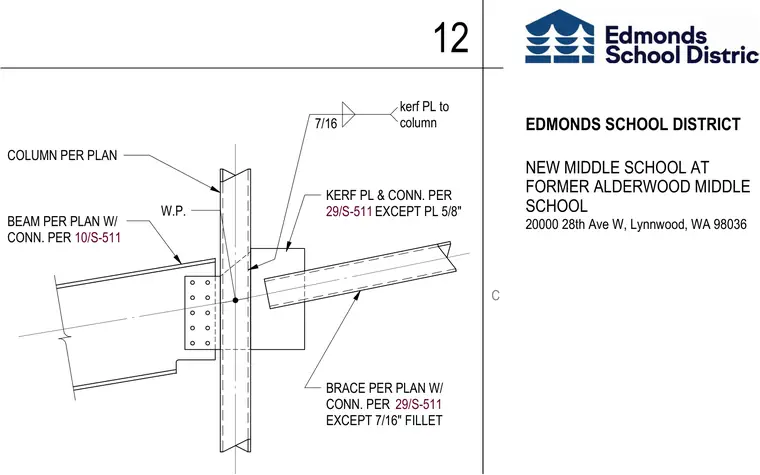

A structural steel brace and beam connect to a steel column at a common working point. A five-eighths-inch kerf plate welded to the column with a seven-sixteenths-inch fillet weld receives the brace member, while the intersecting beam attaches via a shear connection. The brace connection follows standard detailing with modifications specified on the drawing.
BEAM PER PLAN W/ CONN. PER 10/S-511 W.P. KERF PL & CONN. PER EXCEPT PL 5/8" 29/S-511 BRACE PER PLAN W/ CONN. PER EXCEPT 7/16" FILLET COLUMN PER PLAN 7/16 kerf PL to column 29/S-511 C NEW MIDDLE SCHOOL AT FORMER ALDERWOOD MIDDLE SCHOOL 20000 28th Ave W, Lynnwood, WA 98036 EDMONDS SCHOOL DISTRICT 12
