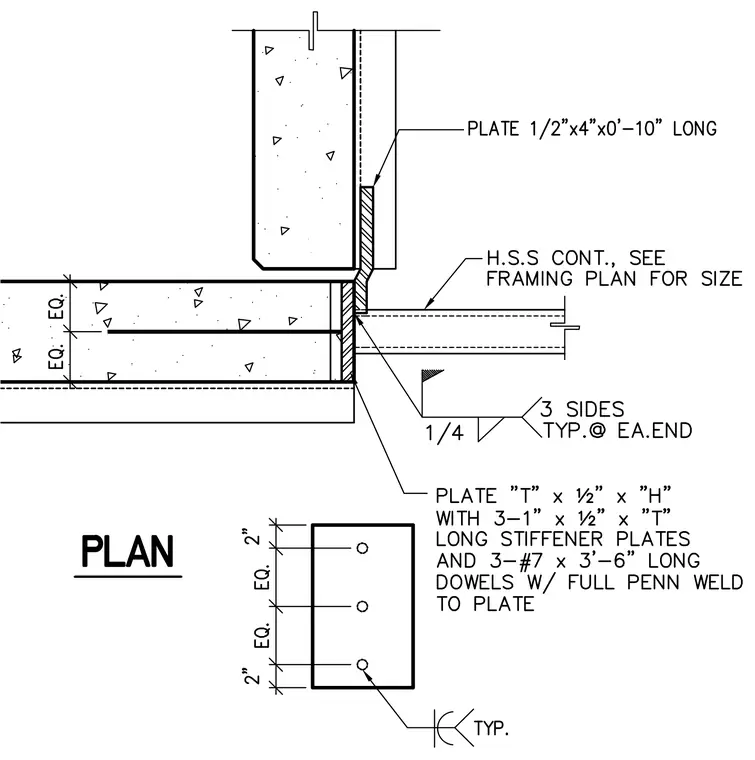

A continuous hollow structural section member frames into a concrete wall utilizing a 1/2 inch by 4 inch by 0 foot 10 inch long plate and a sized plate "T" by 1/2 inch by "H" with three 1 inch by 1/2 inch by "T" long stiffener plates. Three number 7 dowels that are 3 feet 6 inches long feature a full penetration weld to the plate. A continuous hollow structural section is secured with a 1/4 inch fillet weld on three sides typical at each end. The concrete wall assembly includes equal spacing dimensions and embedded dowel configurations.
