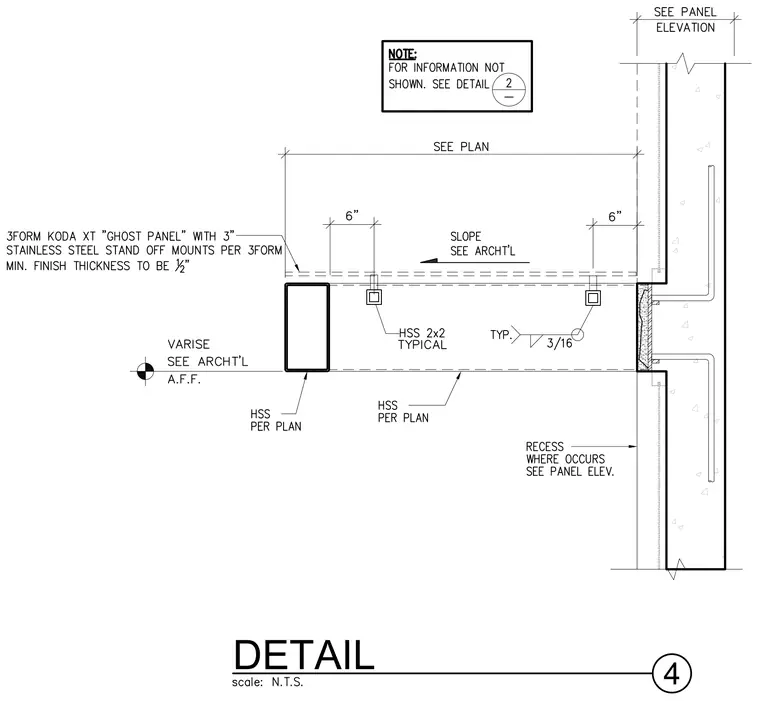

A 3Form Koda XT Ghost Panel is mounted with three-inch stainless steel standoff mounts featuring a minimum finish thickness of one-half inch, attached to a horizontal HSS frame spanning from a concrete wall. The framing consists of hollow structural sections sized per plan, including HSS 2x2 members welded typical with three-sixteenths inch fillet welds. The entire assembly projects from a recessed concrete wall condition sized per panel elevation, with variable heights above finished floor per architectural drawings.
