Double joists run along each side of the roof opening or truss provided by others, supporting the surrounding roof framing per plan unless noted otherwise. Two-inch solid blocking is installed between framing members with boundary nailing over top. Fully nailed ST22 straps tie the framing assembly together across the joints. U-shaped joist hangers sized to fit the joists provide positive connection support at the opening boundaries.

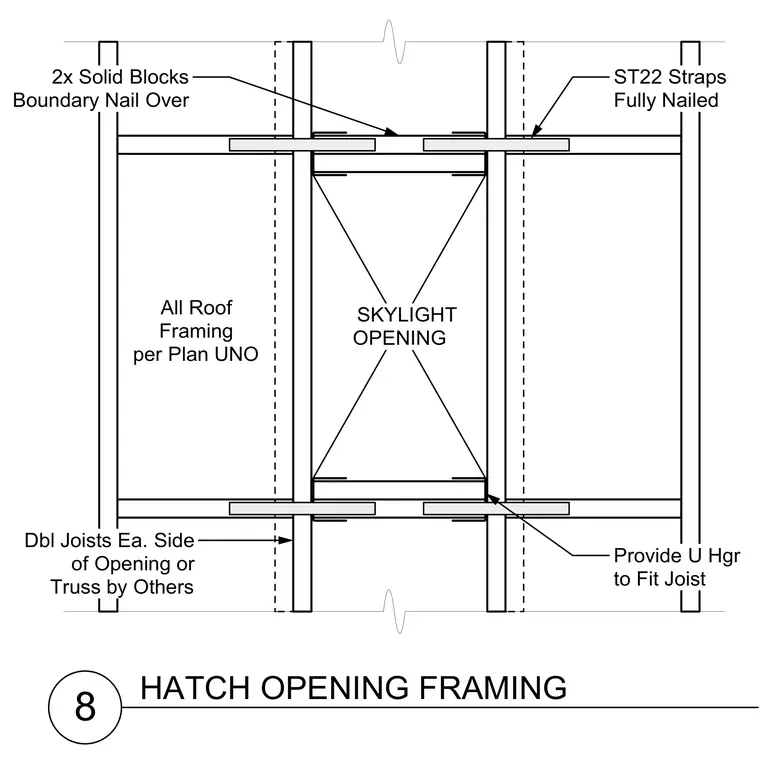

8 HATCH OPENING FRAMING All Roof Framing per Plan UNO SKYLIGHT OPENING ST22 Straps Fully Nailed 2x Solid Blocks Boundary Nail Over Provide U Hgr to Fit Joist Dbl Joists Ea. Side of Opening or Truss by Others
