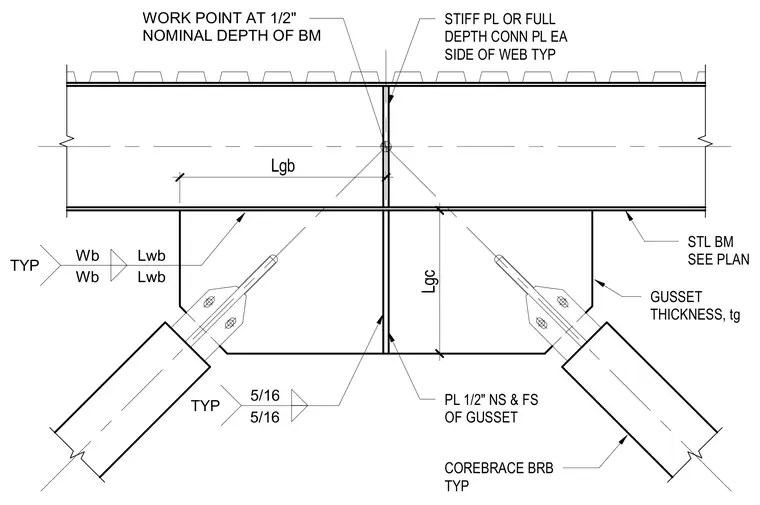

A chevron buckling-restrained brace connects to the underside of a steel beam using a gusset plate of thickness tg with five-sixteenths-inch welds. A half-inch plate is provided on the near side and far side of the gusset. Stiffener plates or full-depth connection plates are placed on each side of the beam web, welded with five-sixteenths-inch welds. The work point is located at one-half the nominal depth of the beam.
Wb Lwb Wb Lwb TYP GUSSET THICKNESS, tg 5/16 5/16 TYP PL 1/2" NS & FS OF GUSSET COREBRACE BRB TYP STL BM SEE PLAN WORK POINT AT 1/2" NOMINAL DEPTH OF BM Lgb Lgc STIFF PL OR FULL DEPTH CONN PL EA SIDE OF WEB TYP
