Supplemental steel angles are field welded to the truss chord to reinforce joists and girders subjected to concentrated point loads. Additional L2x2x1/4 angles are required on each side when offset distances exceed six inches and point loads exceed specified weight thresholds. A three-sixteenth-inch fillet weld of one and one-half inch length is applied at each end typically. Field welding runs from the point load to the nearest panel point on the opposite chord as required.

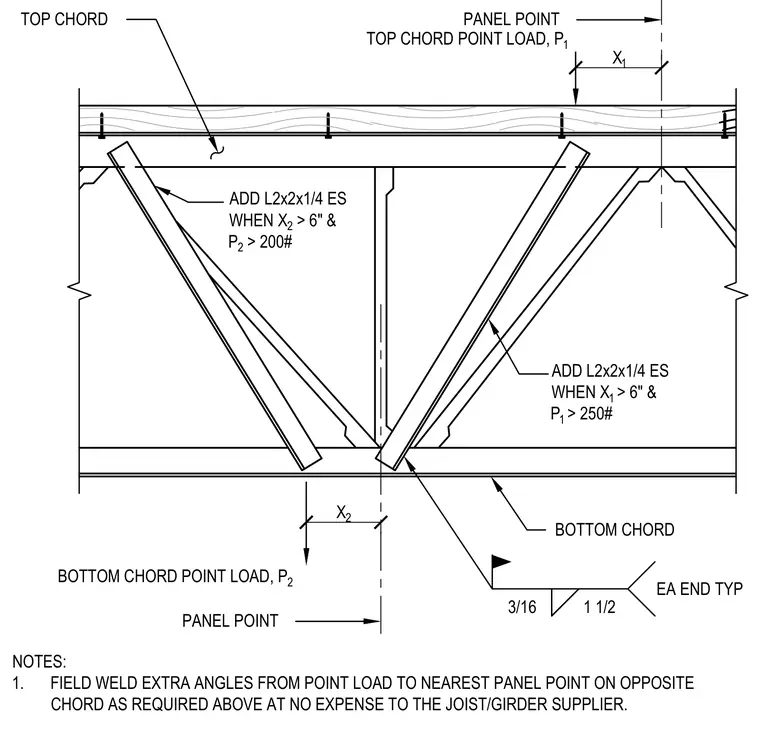

NOTES: 1. FIELD WELD EXTRA ANGLES FROM POINT LOAD TO NEAREST PANEL POINT ON OPPOSITE CHORD AS REQUIRED ABOVE AT NO EXPENSE TO THE JOIST/GIRDER SUPPLIER. PANEL POINT BOTTOM CHORD POINT LOAD, P 2 TOP CHORD POINT LOAD, P 1 TOP CHORD BOTTOM CHORD X 1 ADD L2x2x1/4 ES WHEN X 1 > 6" & P 1 > 250# ADD L2x2x1/4 ES WHEN X 2 > 6" & P 2 > 200# PANEL POINT X 2 3/16 1 1/2 EA END TYP
