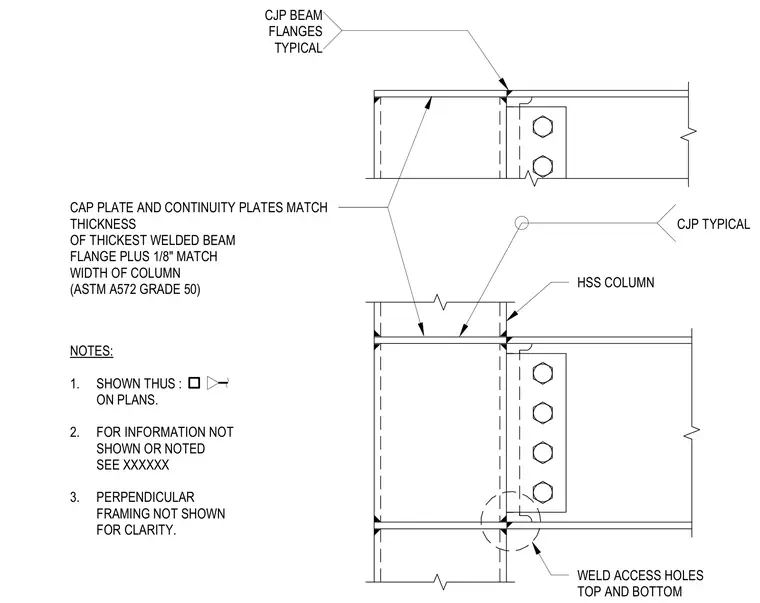

This connection details a structural steel beam framing into a hollow structural section column utilizing complete-joint-penetration welds at the beam flanges and a bolted shear tab at the web. Cap plates and continuity plates match the thickness of the thickest welded beam flange plus one-eighth inch and match the width of the column using ASTM A572 Grade 50 steel. Weld access holes are provided at the top and bottom of the beam flanges. Perpendicular framing is omitted for clarity.
CAP PLATE AND CONTINUITY PLATES MATCH THICKNESS OF THICKEST WELDED BEAM FLANGE PLUS 1/8" MATCH WIDTH OF COLUMN (ASTM A572 GRADE 50) NOTES: 1. SHOWN THUS : ON PLANS. 2. FOR INFORMATION NOT SHOWN OR NOTED SEE XXXXXX 3. PERPENDICULAR FRAMING NOT SHOWN FOR CLARITY. WELD ACCESS HOLES TOP AND BOTTOM HSS COLUMN CJP BEAM FLANGES TYPICAL CJP TYPICAL
