Structural · S-HASZ7

Wide Flange Beam to Column Connection Details

Materials

Steel

Elements

Columns Beams Roofs Floors / Slabs Connections / Plates

Connections

Beam-to-Column Beam-to-Beam Welded Connection Bolted Connection

About this detail

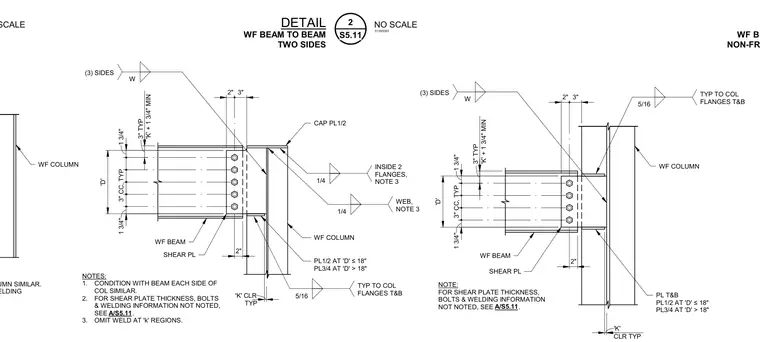

Wide flange beam connections frame into a wide flange column from two sides. The connection utilizes a shear plate bolted to the beam web with three-inch center-to-center spacing, plus top and bottom plates sized one-half inch thick for beam depths up to eighteen inches and three-quarters inch thick for depths greater than eighteen inches. Fillet welds connect the shear plate and top and bottom plates to the column flanges, with welds omitted at the 'k' regions. A cap plate is welded to the top of the column where applicable.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
