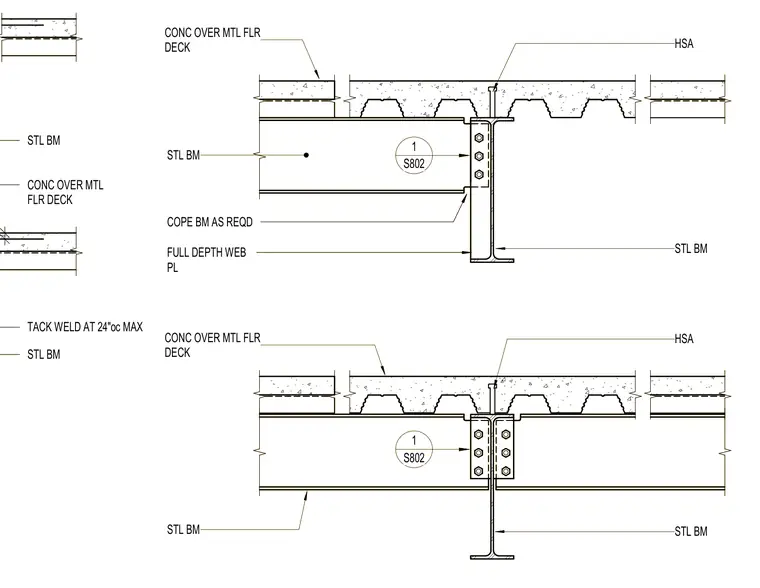

A steel beam framing connection supports a concrete over metal floor deck. The framing consists of steel beams connected via a full depth web plate, with the beam coped as required to fit the supporting member. The metal deck is secured with headed stud anchors and tack welded at a maximum spacing of twenty-four inches on center.
TACK WELD AT 24"oc MAX CONC OVER MTL FLR DECK STL BM STL BM STL BM STL BM STL BM STL BM HSA HSA CONC OVER MTL FLR DECK CONC OVER MTL FLR DECK 1 S802 1 S802 COPE BM AS REQD FULL DEPTH WEB PL TACK WELD AT 24"oc MAX CONC OVER MTL FLR DECK STL BM STL BM STL BM STL BM STL BM STL BM HSA HSA CONC OVER MTL FLR DECK CONC OVER MTL FLR DECK 1 S802 1 S802 COPE BM AS REQD FULL DEPTH WEB PL
