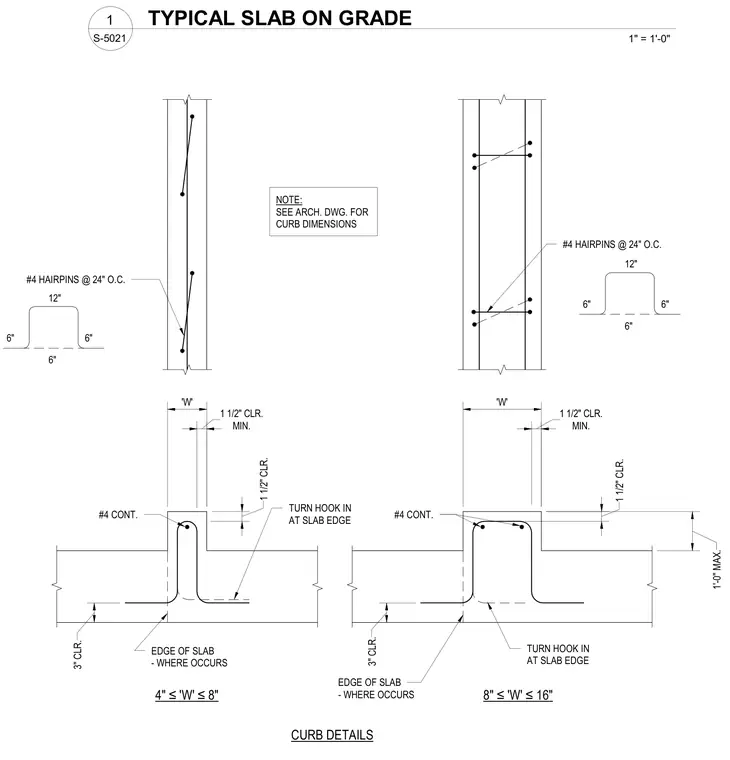

Non-structural concrete slab-on-grade curbs span widths ranging between four and sixteen inches. Continuous number four reinforcing bars run horizontally through the curb assembly with standard clearances maintained at one and one-half inches minimum. Number four hairpins spaced at twenty-four inches on center tie the curb to the main slab, featuring turned-in hooks at the slab edge. A note directs the builder to architectural drawings for specific curb dimensions.
12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. NOTE: SEE ARCH. DWG. FOR CURB DIMENSIONS 12" 6" 6" 6" #4 HAIRPINS @ 24" O.C. 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. TURN HOOK IN AT SLAB EDGE #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS 4" ≤'W' ≤8" 8" ≤'W' ≤16" 'W' MIN. 1 1/2" CLR. 1 1/2" CLR. #4 CONT. 3" CLR. EDGE OF SLAB - WHERE OCCURS TURN HOOK IN AT SLAB EDGE CURB DETAILS 1'-0" MAX. S-5021 1" = 1'-0" 1 TYPICAL SLAB ON GRADE
