A steel column terminates below the floor level where the column does not extend above the floor at similar conditions. Steel beams frame into the column flanges and web using bolted shear tab connections. A concrete slab over metal floor deck spans across the steel framing members.

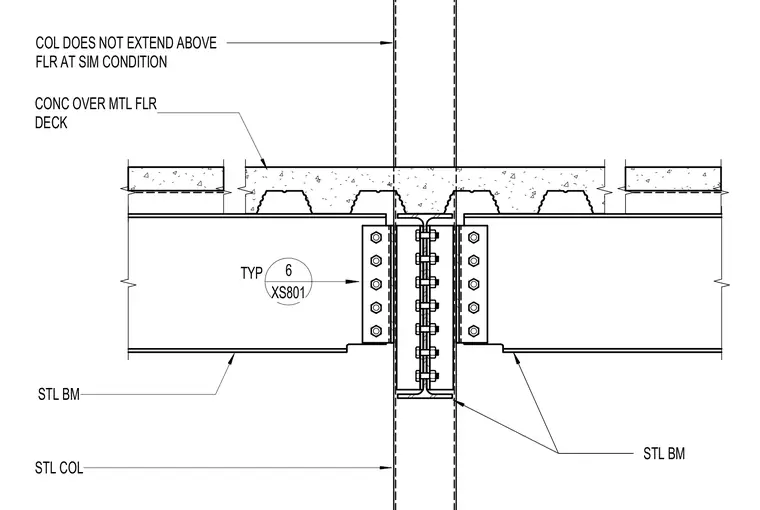

STL COL STL BM COL DOES NOT EXTEND ABOVE FLR AT SIM CONDITION CONC OVER MTL FLR DECK STL BM 6 XS801 TYP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
