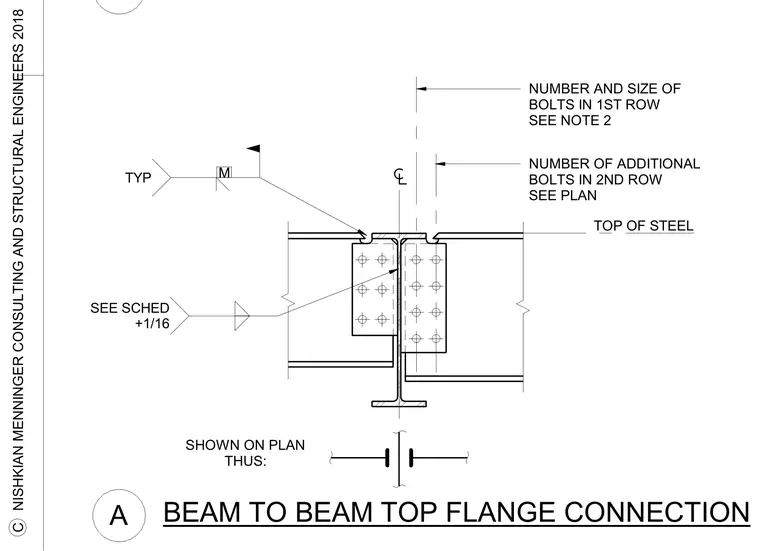

A beam to beam top flange connection joins structural steel framing members using a bolted shear tab and top flange plate assembly. The connection features a first row of bolts sized per note two and additional bolts in a second row sized per plan. A weld symbol designates the field weld at the top flange connection. A clearance of plus one-sixteenth inch is indicated at the shear plate connection per schedule.
TYP M SEE SCHED +1/16 SHOWN ON PLAN THUS: NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN TOP OF STEEL A BEAM TO BEAM TOP FLANGE CONNECTION B C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018
