Structural · S-HAD37

Typical Concrete Deck Edge and Beam Connections

Materials

Elements

About this detail

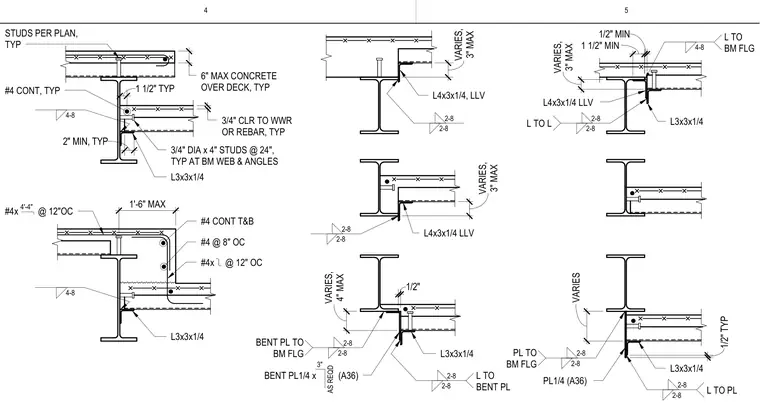

This composite detail assembly features a concrete topping over a metal deck supported by structural steel beams. Shear studs measuring three-quarters of an inch in diameter by four inches long are welded to the beam web and angles typically at twenty-four inches on center. Continuous number four reinforcing bars run top and bottom alongside spaced number four bars at eight and twelve inches on center with welded wire reinforcement or rebar clearance maintained at three-quarters of an inch. Support angles including sizes such as L4x3x1/4 and L3x3x1/4 alongside A36 bent plates connect the deck edge conditions back to the steel beam flanges. Various dimensions govern the maximum overhangs, clearances, and edge distances ranging from one-half inch to one and one-half inches minimum up to four inches maximum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
