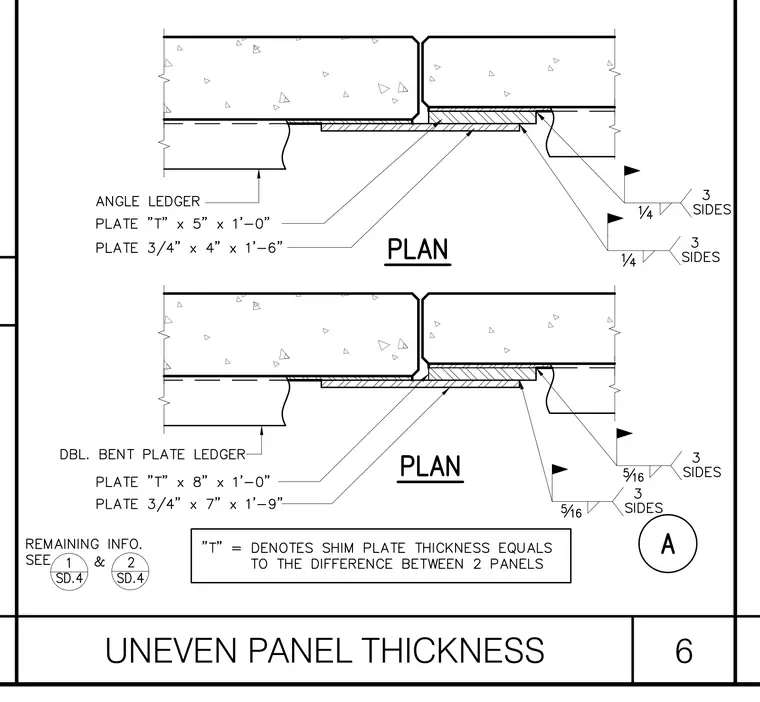

Precast concrete wall panels with varying thicknesses connect through shim plates and ledger angles welded in place. The top plan detail features an angle ledger secured with one plate measuring "T" by five inches by one foot zero inches and another plate measuring three-quarters of an inch by four inches by one foot six inches, welded with quarter-inch welds on three sides. The bottom plan detail utilizes a double bent plate ledger paired with a shim plate measuring "T" by eight inches by one foot zero inches and a plate measuring three-quarters of an inch by seven inches by one foot nine inches, joined with five-sixteenth-inch welds on three sides. The variable "T" denotes shim plate thickness equal to the difference between two panels.
