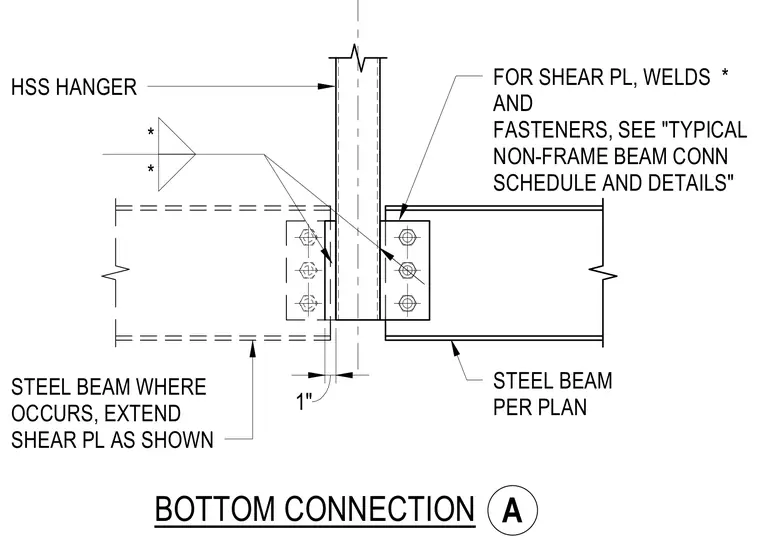

Steel beams connect to a vertical hollow structural section hanger using bolted shear plates on either side of the hanger. The shear plates are sized and welded according to the typical non-frame beam connection schedule. Where indicated, the shear plate extends to accommodate specific framing conditions with a one-inch clearance dimension.
FOR SHEAR PL, WELDS * AND FASTENERS, SEE "TYPICAL NON-FRAME BEAM CONN SCHEDULE AND DETAILS" STEEL BEAM WHERE OCCURS, EXTEND SHEAR PL AS SHOWN STEEL BEAM PER PLAN HSS HANGER BOTTOM CONNECTION * * 1" A
