Structural · S-HA72H

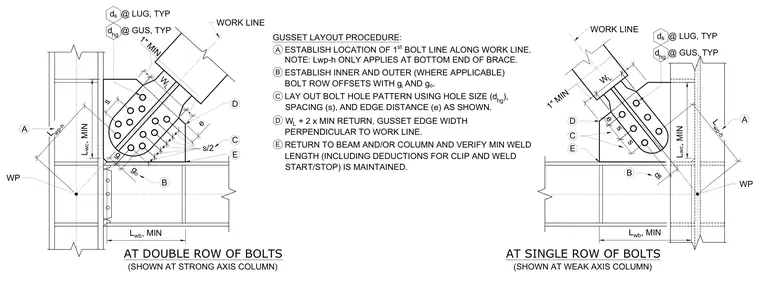

Braced Frame Gusset Plate Connection Layout

Materials

weld

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

Establish the location of the first bolt line along the work line, noting that the height parameter applies at the bottom end of the brace. Determine inner and outer bolt row offsets using the specified gauges, and lay out the bolt hole pattern using the designated hole size, spacing, and edge distance. Verify the gusset edge width perpendicular to the work line, and check the return length to the beam and column to ensure the minimum weld length is maintained after accounting for clips and weld starts and stops.
