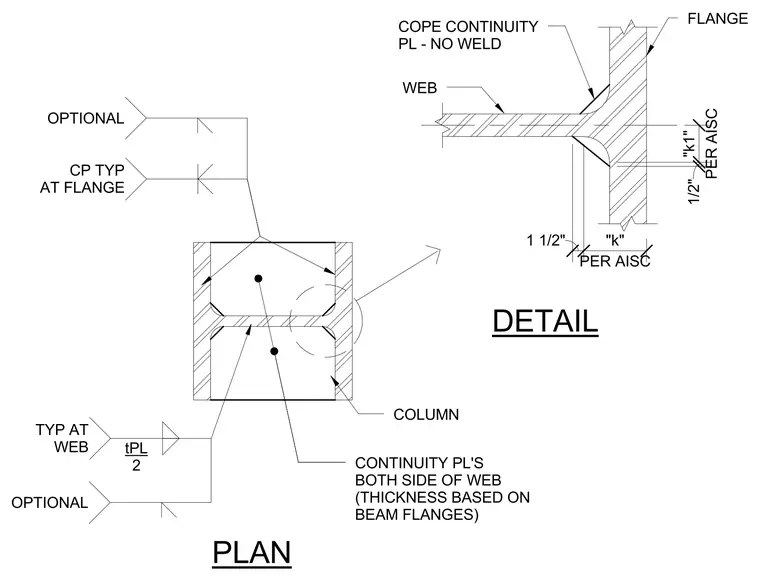

Continuity plates are placed on both sides of the column web with a thickness based on the connecting beam flanges. Dimensions for the cope and plate placement follow AISC standards for distance "k" and "k1". A cope is provided at the continuity plate with no weld specified in that zone. Additional optional continuity plates are indicated typically at the web and flange locations.
DETAIL PLAN COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 1/2" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB tPL 2 OPTIONAL CP TYP AT FLANGE
