Davit Base Detail at Beam Intersection

Materials

Steel

Elements

Columns Beams

Connections

Bolted Connection

About this detail

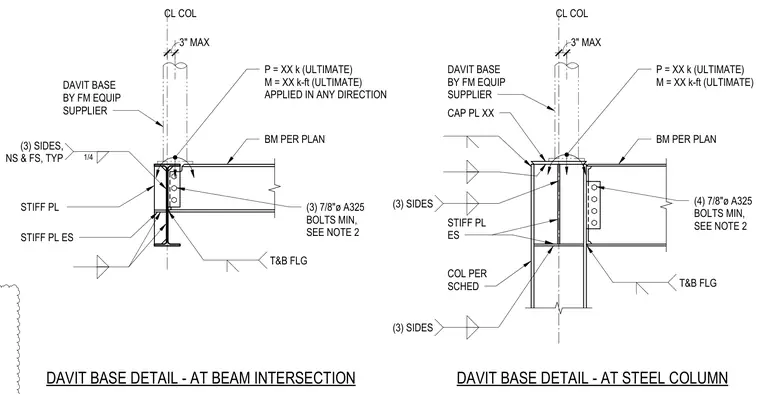

A roof or wall davit base supplied by equipment manufacturer mounts to a structural steel beam and column intersection with applied ultimate axial and moment loads. The connection incorporates custom cap plates, stiffener plates on both near side and far side, and welded attachments specified with quarter-inch fillet welds on three sides typically. A beam per plan connects to the supporting column web using three or four seven-eighths-inch diameter A325 bolts minimum. Column sections are sized per schedule with top and bottom flange connections welded accordingly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
