Structural · S-H9M29

Conditions at Pipe Perpendicular to Footing

Materials

Elements

About this detail

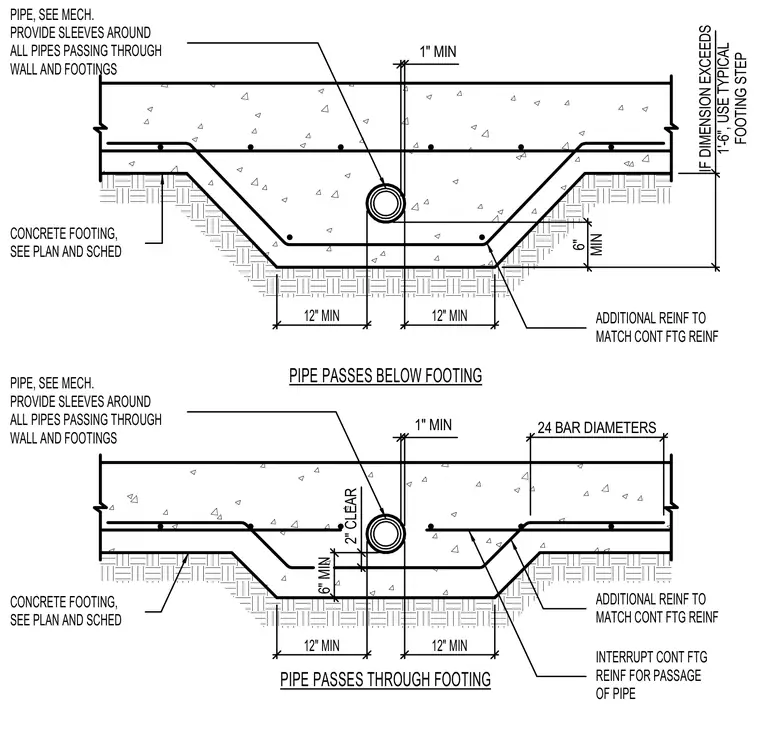

Structural conditions for mechanical pipes running perpendicular to concrete footings feature two conditions where the pipe either passes through or below the footing. Continuous footing reinforcement is interrupted at the pipe passage with additional reinforcement added to match the continuous footing reinforcement. Sleeves are required around all pipes passing through walls and footings. Clearances include one inch minimum and six inches minimum dimensions, with twenty-four bar diameters lap lengths where applicable.
