Horizontal reinforcing steel is detailed for concrete masonry unit wall corners, wall intersections, and wall ends with specific lap lengths per typical structural notes. The reinforcing steel laps continuously around corners and into intersecting walls according to standard structural details. Reinforcement layout must be coordinated with control joint locations as indicated on referenced sheets.

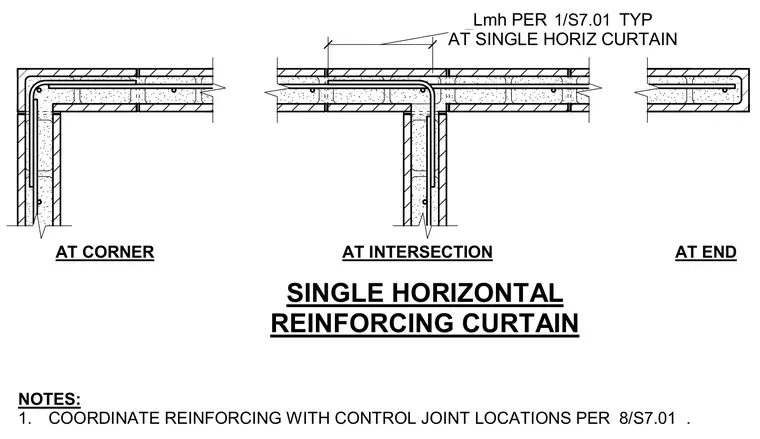

AT SINGLE HORIZ CURTAIN Lmh PER TYP NOTES: 1. COORDINATE REINFORCING WITH CONTROL JOINT LOCATIONS PER . SINGLE HORIZONTAL REINFORCING CURTAIN AT CORNER AT INTERSECTION AT END 1/S7.01 8/S7.01
