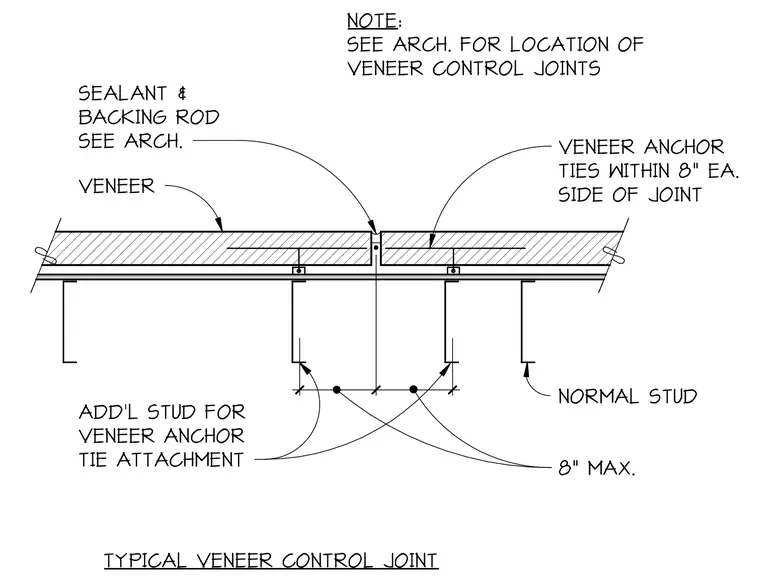

A veneer control joint is constructed with sealant and backing rod located per architectural drawings between adjacent veneer sections. Normal studs and additional studs provide veneer anchor tie attachment within eight inches on each side of the joint, spaced at eight inches maximum.
NOTE: SEE ARCH. FOR LOCATION OF VENEER CONTROL JOINTS SEALANT & BACKING ROD SEE ARCH. VENEER VENEER ANCHOR TIES WITHIN 8" EA. SIDE OF JOINT NORMAL STUD ADD'L STUD FOR VENEER ANCHOR TIE ATTACHMENT TYPICAL VENEER CONTROL JOINT 8" MAX.
