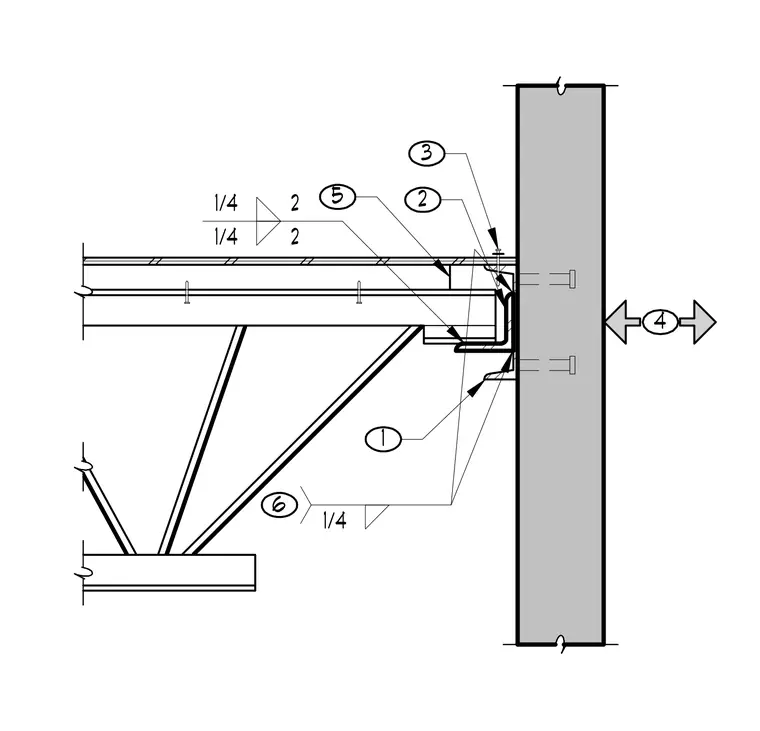

An open web steel joist bears against the interior face of a concrete tilt-up wall panel. The joist seat rests on a structural steel angle anchored back to the concrete panel with embedded stud anchors. Fillet welds secure the joist seat to the supporting angle assembly. Additional connection angles and fasteners provide lateral stabilization at the panel interface.
