Two-by-ten skylight curb framing bears on doubled two-by sub-purlins. The sub-purlins are fastened with ten-penny nails spaced at six inches on center. Pairs of Simpson A35 framing anchors and a Simpson HRS8 strap connect at each corner. An eight-inch vertical dimension coordinates the anchor spacing.

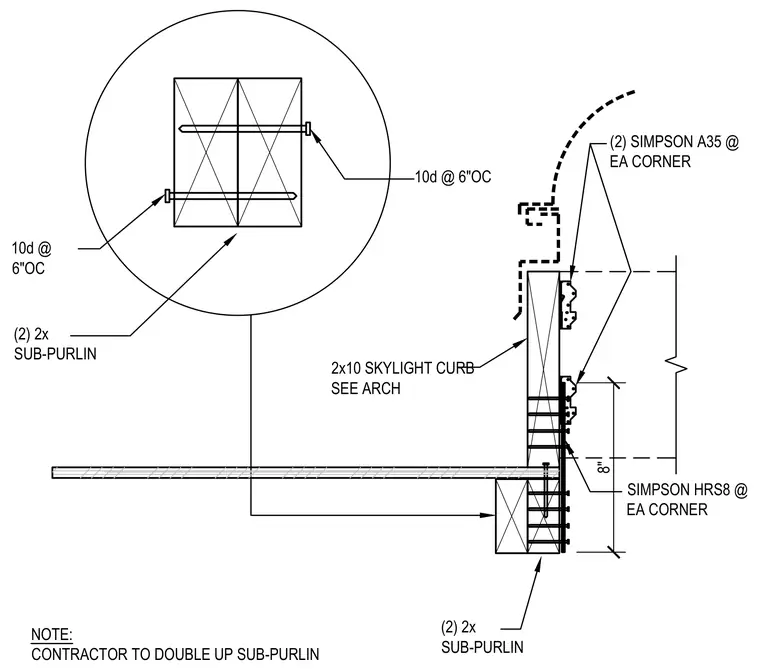

NOTE: CONTRACTOR TO DOUBLE UP SUB-PURLIN 10d @ 6"OC (2) 2x SUB-PURLIN 2x10 SKYLIGHT CURB SEE ARCH (2) 2x SUB-PURLIN SIMPSON HRS8 @ EA CORNER 10d @ 6"OC (2) SIMPSON A35 @ EA CORNER 8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
