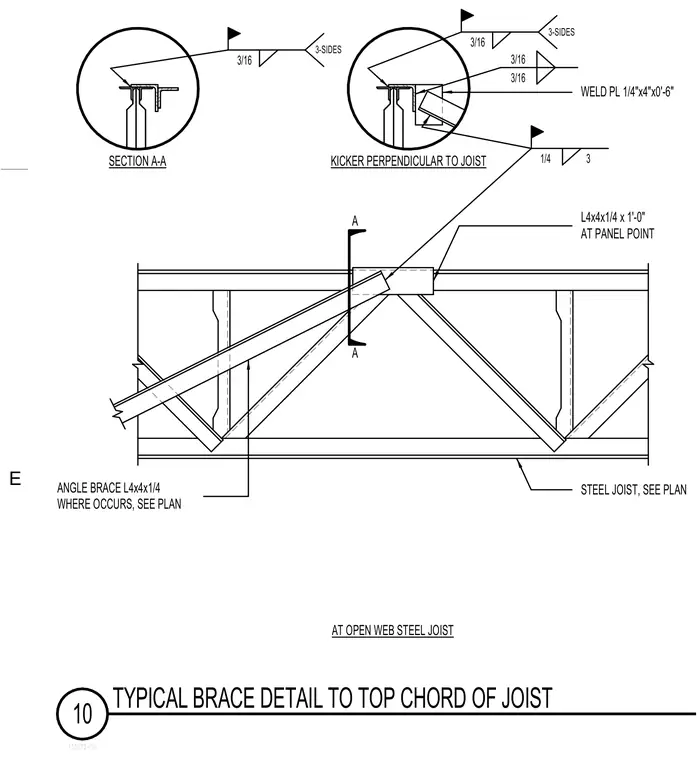

An angle brace connects to the top chord of an open web steel joist at a panel point, sized per plan. A plate measuring one-quarter inch by four inches by six inches welds to the assembly with a three-sixteenths inch fillet weld on three sides. A kicker perpendicular to the joist incorporates similar welded connections. An angle brace measuring four inches by four inches by one-quarter inch by one foot zero inches attaches where required per plan.
137272-00 10 TYPICAL BRACE DETAIL TO TOP CHORD OF JOIST L4x4x1/4 x 1'-0" AT PANEL POINT STEEL JOIST, SEE PLAN ANGLE BRACE L4x4x1/4 WHERE OCCURS, SEE PLAN 3/16 SECTION A-A 3/16 3/16 WELD PL 1/4"x4"x0'-6" KICKER PERPENDICULAR TO JOIST 3/16 3 1/4 3-SIDES 3-SIDES AT OPEN WEB STEEL JOIST A A E
